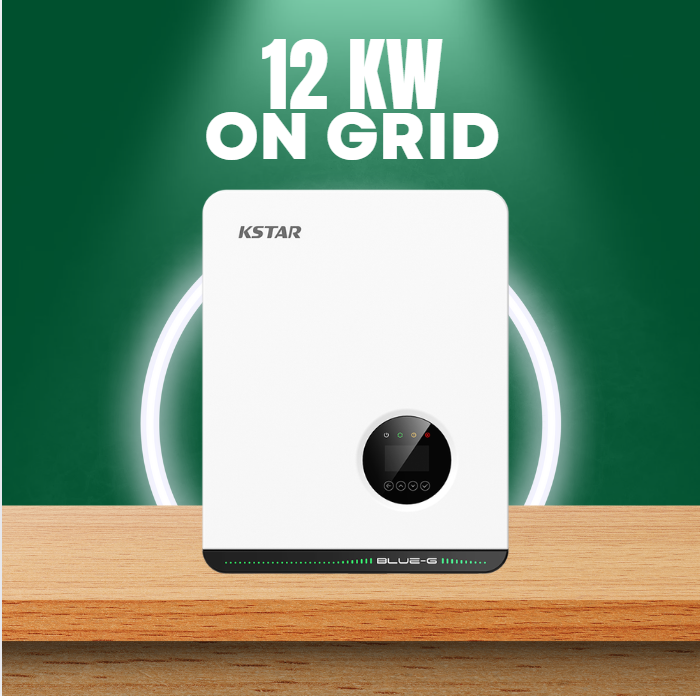

12kW On Grid Three Phase Inverter | K-Star
10 Year Replacement
Rs 261000.00Rs 231000.00

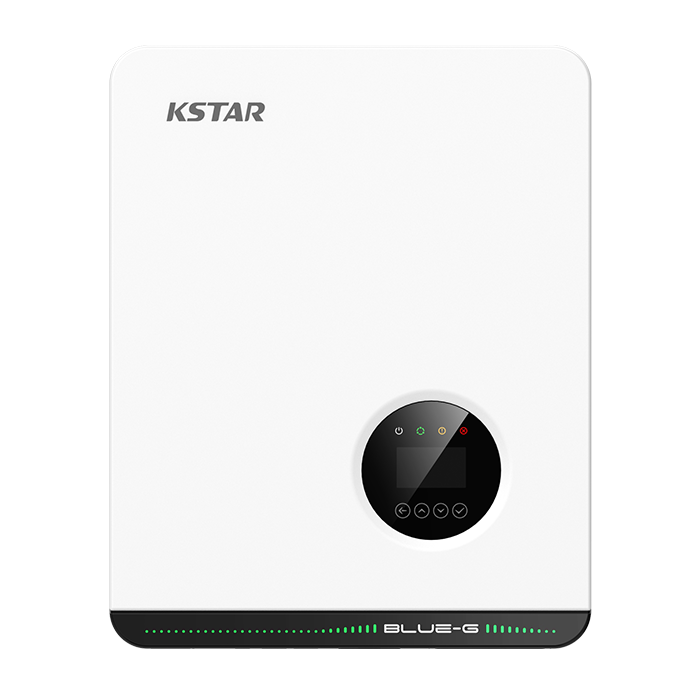

The BluE-12KTL-M1 is a cutting-edge three-phase PV on-grid string inverter designed for optimal solar energy efficiency. With a maximum efficiency of 98.6%, it ensures superior energy conversion. Featuring a compact and lightweight design, the inverter is easy to install and robust enough for challenging environments, thanks to its IP66 protection rating.
This model supports a maximum PV voltage of 800V and provides excellent safety features, including surge protection and anti-islanding mechanisms. Equipped with advanced communication capabilities like RS485, WiFi, and 4G, it offers seamless integration and real-time monitoring.
The BluE-12KTL-M1 is an ideal choice for residential or commercial solar installations requiring a reliable and efficient inverter
Model: BluE-12KTL-M1
Type: Three-Phase PV On-Grid String Inverter
Efficiency: Up to 98.6% max efficiency
Voltage:
Max PV Voltage: 800V
MPPT Voltage Range: 200V-750V
Design:
Compact and lightweight (25.5kg)
Dimensions: 380x483x193mm
Safety and Protection:
IP66-rated for outdoor use
DC/AC surge protection (Type II)
Anti-islanding and short-circuit protection
Insulation detection
Advanced Features:
Reactive power control
WiFi/4G communication options
Durability:
Operating temperature: -25°C to +60°C
Max operating altitude: 4000m
Certification: Complies with EN/IEC standards
Additional Features:
Transformer-less design
LCD display for monitoring
