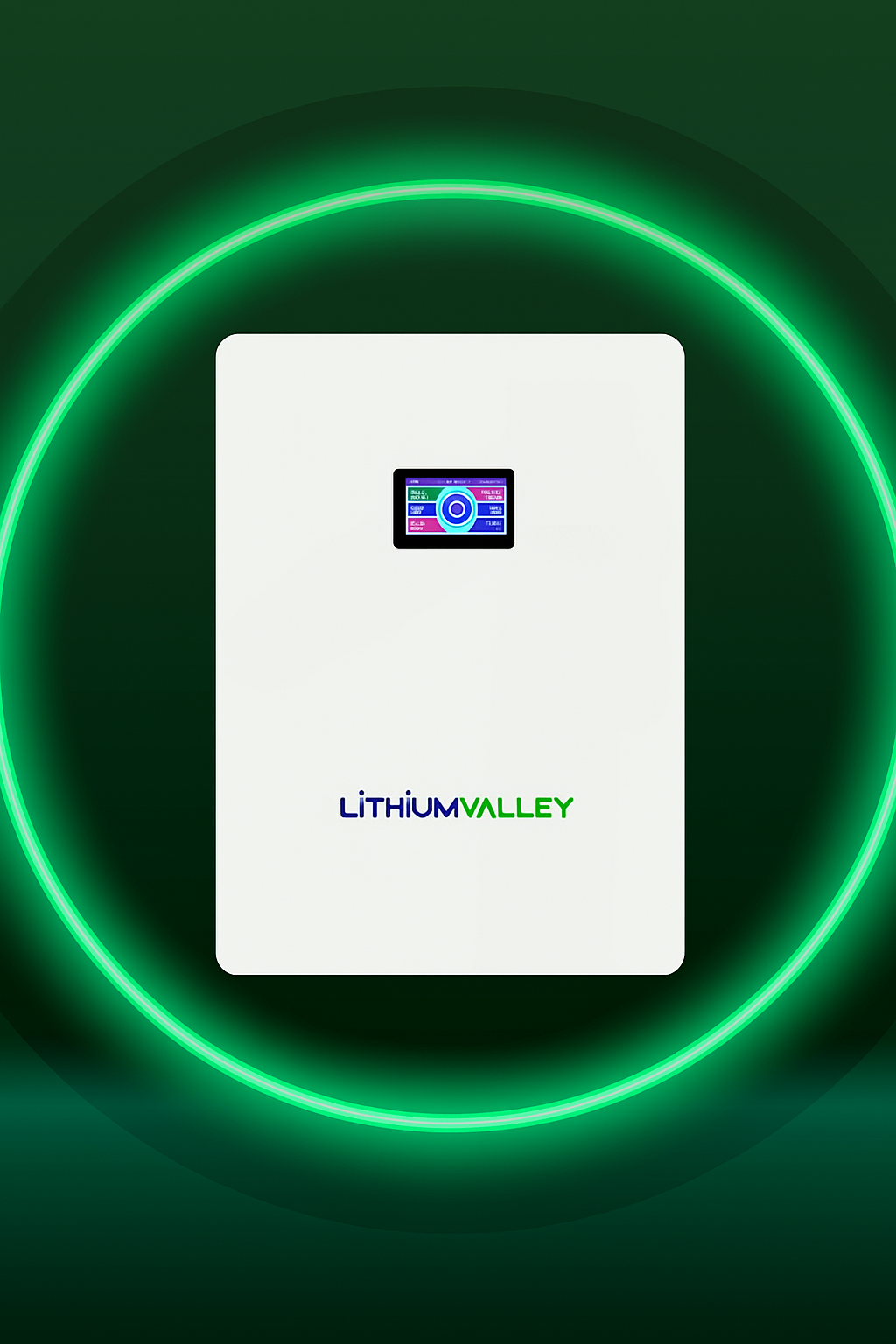

Lithium Valley 25.6v 100Ah Battery IP20
5 Year Replacement
Rs 154000.00Rs 134500.00
⚡ LV-BAT-W5.12Ac – Power That Stands the Test of Time
Experience uninterrupted energy and long-lasting performance with the LV-BAT-W5.12Ac Lithium Iron Phosphate Battery (LiFePO4) — engineered for those who value reliability, safety, and peace of mind. Whether it's for home backup, solar storage, or commercial use, this powerhouse is built to deliver stable power for years without compromise.
📜 International Safety Certifications
Certified for global compliance and safety:
CB, IEC62619, UL1973, UKCA, CE-EMC, CE-GPSD, EN62619, UN38.3, MSDS

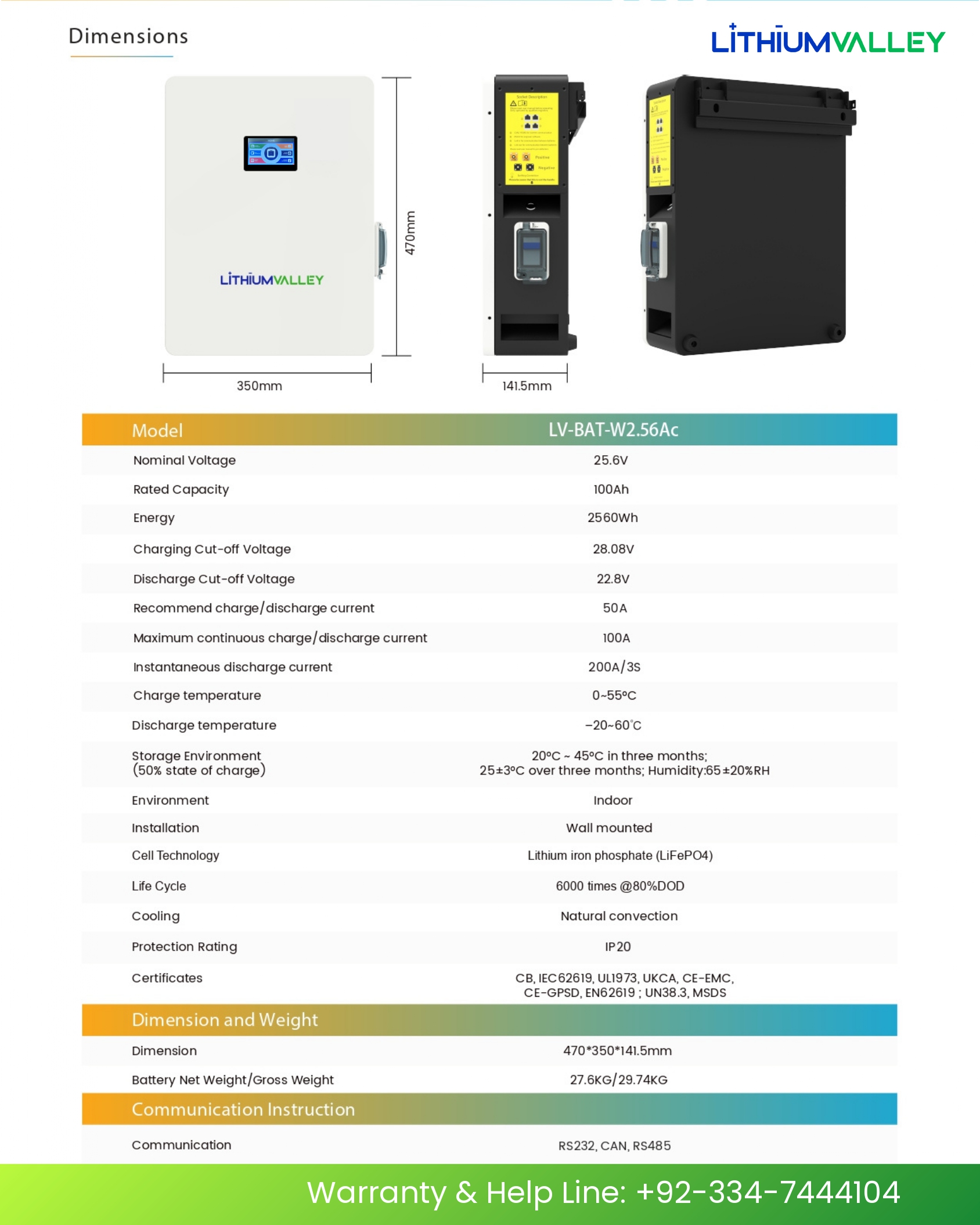

Model: LV-BAT-W2.56Ac
Nominal Voltage: 25.6V
Rated Capacity: 100Ah
Energy Storage: 2560Wh
⚡ Electrical Specifications
Charging Cut-off Voltage: 28.08V
Discharge Cut-off Voltage: 22.8V
Recommended Charge/Discharge Current: 50A
Maximum Continuous Charge/Discharge Current: 100A
Instantaneous Discharge Current: 200A (for 3 seconds)
🌡 Operating Conditions
Charge Temperature: 0°C to 55°C
Discharge Temperature: -20°C to 60°C
Storage Environment:
20°C to 45°C for 3 months (50% state of charge)
25°C ± 3°C for over 3 months (Humidity ≤ 85% ± 20% RH)
🏠 Installation & Design
Application Environment: Indoor
Mounting Type: Wall-Mounted
Cooling Method: Natural Convection
Cell Technology: Lithium Iron Phosphate (LiFePO4)
🔁 Durability & Safety
Life Cycle: 6000 cycles @ 80% Depth of Discharge (DOD)
Protection Rating: IP20
Certified Standards: CB, IEC62619, UL1973, UKCA, CE-EMC, CE-GPSD, EN62619, UN38.3, MSDS
📏 Size & Weight
Dimensions: 470 × 350 × 141.5 mm
Net Weight / Gross Weight: 27.6 kg / 29.74 kg
🛠 Communication Interfaces
Supported Protocols: RS232, CAN, RS485
